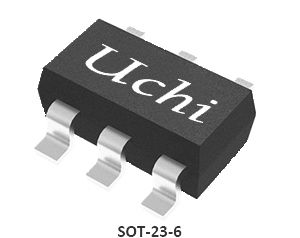

Micro-Power, CMOS Input,RRIO, 1.4V, Push-Pull OutputComparator With Latch Enable Integrated Circuit IC
Ürün ayrıntıları:
| Menşe yeri: | Dongguan Çin |
| Marka adı: | UCHI |
| Sertifika: | Completed |
| Model numarası: | SGM8703 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1000 pcs |
|---|---|
| Fiyat: | pazarlık edilebilir |
| Ambalaj bilgileri: | Standart |
| Teslim süresi: | 3 hafta |
| Ödeme koşulları: | T/T, Western Union |
| Yetenek temini: | 5000 pcs |
|
Detay Bilgi |
|||
| Besleme voltajı: | 6V | VIN Farklılığı: | ±2,5V |
|---|---|---|---|
| Giriş/Çıkış Pinlerindeki Gerilim: | . (-VS) - 0,3V ila (+VS) + 0,3V | Diferansiyel Giriş Gerilimi: | 1.5V |
| BİRLEŞME SICAKLIĞI: | +150°C | Depolama Sıcaklığı Aralığı: | -65℃ ila +150℃ |
| Kurşun Sıcaklığı (Lehimleme, 10s): | +260°C | HBM: | 3000V |
| mm: | 400V | Çalışma sıcaklığı aralığı: | -40 ℃ ila +85 ℃ |
Ürün Açıklaması
Micro-Power, CMOS Input,RRIO, 1.4V, Push-Pull OutputComparator With Latch Enable Integrated Circuit IC
The SGM8703 is a single, rail-to-rail input CMOScomparator with typical 300nA ultra-low power supplycurrent. The comparator operates from a wide range of1.4V to 5.5V supply voltage, and is guaranteed tooperate at 1.4V, 2.5V and 5.0V. This feature is suitablefor battery-powered applications.The SGM8703 is optimized for micro-power, single-supplyoperation. The push-pull output stage supportsrail-to-rail output swing and allows for operation withabsolute minimum power consumption when drivingany capacitive or resistive load. The SGM8703 alsohas a latch enable input pin (LE ).The SGM8703 is available in a Green SOT-23-6package. The small package makes this device idealfor use in hand-held electronics and mobile phoneapplications. It is rated over the -40°C to +85°Ctemperature range.
Key Features
● Ultra-Low Quiescent Current:300nA (TYP) at VS = 1.4V
● Wide Single-Supply Voltage Range: 1.4V to 5.5V
● Typical 6μs Propagation Delay at VS = 1.4V
● Latch Function Included
● Rail-to-Rail Input and Output
● Push-Pull Output Current Drive:19mA (TYP) at VS = 5V
● -40℃ to +85℃ Operating Temperature Range
● Available in a Green SOT-23-6 Package
Applications
Portable and Battery-Powered Applications
Alarm and Surveillance Circuits
Mobile Phones
RC Timers
Hand-Held Electronics
Window Detectors
IR Receiver
Alarm and Surveillance Circuits
Mobile Phones
RC Timers
Hand-Held Electronics
Window Detectors
IR Receiver
Pin Configurations
Product Selection Guide
| Amplifiers per Package | Part Number | IQ/Amp Typ (μA) |
Latch
Enable
|
VCC(V) |
Enable
Max @25℃(mV) |
tPD, H to L
@VCC = 5V(μs) |
tPD, L to H
@VCC = 5V
(μs)
|
Logic
Output |
Reference
Output
(V) |
Rise Time
@VCC = 5V
(ns) |
Fall Time
@VCC = 5V(ns) |
Package | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SGM8701 | 350 | No | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
SOT-23-5,SC70-5
|
Ultra Low Power, Push-Pull, Small Package
|
| 1 | SGM8702 | 350 | No | 1.4~5.5 | 3 | 6 | 33 |
Open-Drain (PFET)
|
NA | 85 | NA |
SOT-23-5,SC70-5
|
Ultra Low Power, PFET Open-Drain, Small Package
|
| 1 | SGM8703 | 350 | Yes | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
SOT-23-6
|
Latch Enable, Ultra Low Power, Push-Pull, Small Package
|
| 1 | SGM8704 | 350 | Yes | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull & Invert
|
NA | 85 | 60 |
SOIC-8,MSOP-8
|
Latch Enable, Ultra Low Power, Push-Pull and Inverter
|
| 2 | SGM8705 | 350 | No | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
SOIC-8,MSOP-8
|
Ultra Low Power, Push-Pull
|
| 1 | SGM8706 | 2300 | Yes | 1.8~5.5 | 3 | 5.6 | 30 |
Push-Pull
|
1.2 | 40 | 30 |
SOIC-8,SOT-23-8,SOT-23-6
|
Internal Reference, Latch Enable, Ultra Low Power, Push-Pull
|
| 1 | SGM8707 | 350 | No | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
SOT-23-5,SC70-5
|
Ultra Low Power, Push-Pull, Small Package
|
| 1 | SGM8708 | 2300 | Yes | 1.8~5.5 | 3 | 5.6 | 30 |
Push-Pull & Invert
|
1.2 | 40 | 30 |
SOT-23-8,SOIC-8
|
Internal Reference, Latch Enable, Ultra Low Power, Push-Pull and Inverter
|
| 1 | SGM8709 | 350 | No | 1.4~5.5 | 3 | 5 |
Open-Drain (NFET)
|
NA | NA | 36 |
SOT-23-5,SC70-5
|
Ultra Low Power, NFET Open-Drain, Small Package
|
|
| 1 | SGM8710 | 2300 | Yes | 1.8~5.5 | 3 | 5.6 |
Open-Drain (NFET)
|
1.2 | NA | 30 |
SOT-23-8,SOT-23-6
|
Internal Reference, Latch Enable, Ultra Low Power, NFET Open-Drain
|
|
| 1 | SGM8711 | 2300 | No | 1.8~5.5 | 3 | 5.6 | 30 |
Push-Pull
|
1.2 | 40 | 30 |
UTDFN-1.6×1.6-6L
|
Tiny Package, Internal Reference, Ultra Low Power, Push-Pull
|
| 2 | SGM8712 | 350 | No | 1.8~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
MSOP-8
|
Ultra Low Power, Push-Pull
|
| 1 | SGM8713A-1 | 300 | No | 1.6~5.5 | 10 |
Push-Pull
|
7 | 15 |
XTDFN-0.8×0.8-4L
|
Small Size, Nano Power, Push-Pull
|
|||
| 1 | SGM8713B-1 | 300 | No | 1.6~5.5 | 10 | 3 | 5 |
Open-Drain (NFET)
|
15 |
XTDFN-0.8×0.8-4L
|
Small Size, Nano Power, Open-Drain
|
||
| 1 | SGM8714A-1 | 300 | No | 1.6~5.5 | 10 |
Push-Pull
|
6 | 6 |
XTDFN-1×1-6L
|
Small Size, Nano Power, Push-Pull
|
|||
| 1 | SGM8714B-1 | 300 | No | 1.6~5.5 | 10 | 4 | 6 |
Open-Drain (NFET)
|
6 |
XTDFN-1×1-6L
|
Small Size, Nano Power, Open-Drain
|
