BLDC-3640 Brushless Motors With Reduction Gearbox For Electric Shaver And Vibrator
Ürün ayrıntıları:
| Menşe yeri: | Dongguan Çin |
| Marka adı: | UCHI |
| Sertifika: | Completed |
| Model numarası: | BLDC 3640 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1000 pcs |
|---|---|
| Fiyat: | pazarlık edilebilir |
| Ambalaj bilgileri: | Standart |
| Teslim süresi: | 5-7 gün |
| Ödeme koşulları: | T/T, Western Union |
| Yetenek temini: | 5000 adet stok |
|
Detay Bilgi |
|||
| İşletim aralığı: | 9V ~ 14V/19V ~ 26V | Nominal: | 12V/24V sabiti |
|---|---|---|---|
| Sertifika: | 3C | Yüksüz hız dev/dak: | 16020 rpm maks. |
| Yüksüz akım a: | 0.56Max | Maksimum verimlilikte hız: | 13416 rpm maks. |
| Maksimum verimlilikte akım: | 2.35a Max | Maksimum verimlilikte EFF: | Maks.% 74.6 |
| Vurgulamak: | Reduction Gearbox Brushless Motor,Electric Shaver Brushless Motor,BLDC-3640 Brushless Motor |
||
Ürün Açıklaması
A BLDC-3640 brushless motor is a type of Brushless Direct Current (BLDC) motor. BLDC motors are also known as electronically commutated motors (ECMs). They use permanent magnets and an electronic control circuit to generate rotational motion. The BLDC-3640 specifically refers to a model with a 36mm diameter and a 40mm length.

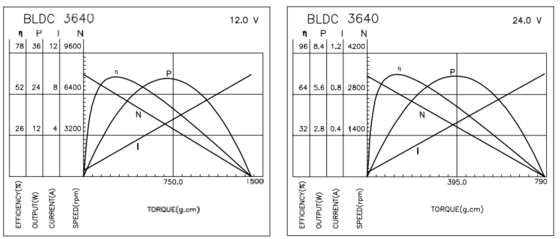

Brushless Motor Technical Data
Typical Application:
1. Electric Shaver
2. Vibrator
3. Home Application
Features:
1.High Efficiency: BLDC motors eliminate brush friction, reducing energy loss and improving power savings. Efficiency can reach 85-90%, significantly higher than traditional brushed motors.
2.Long Lifespan: The absence of brushes prevents wear, extending the motor's lifespan to tens of thousands of hours.
3.High Torque: The BLDC-3640 can provide high torque output, making it suitable for demanding industrial and commercial applications.
