BLDC 3630 Brushless Motors For Industry Apparatus And Home Application
Ürün ayrıntıları:
| Menşe yeri: | Dongguan Çin |
| Marka adı: | UCHI |
| Sertifika: | Completed |
| Model numarası: | BLDC 3630 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1000 pcs |
|---|---|
| Fiyat: | pazarlık edilebilir |
| Ambalaj bilgileri: | Standart |
| Teslim süresi: | 5-7 gün |
| Ödeme koşulları: | T/T, Western Union |
| Yetenek temini: | 5000 adet stok |
|
Detay Bilgi |
|||
| İşletim aralığı: | 9V ~ 14V/19V ~ 26V | Nominal: | 12V/24V sabiti |
|---|---|---|---|
| Sertifika: | 3C | Yüksüz hız dev/dak: | 11900 rpm maks. |
| Yüksüz akım a: | 0.35 maks. | Maksimum verimlilikte hız: | 9065 rpm maks. |
| Maksimum verimlilikte akım: | 1.08a Max | Maksimum verimlilikte EFF: | % 61.0 maks. |
| Vurgulamak: | Industry Apparatus Brushless Motor,3630 Brushless Motor |
||
Ürün Açıklaması

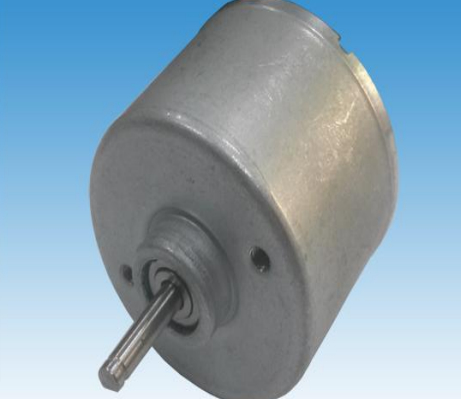

BLDC 3630 Brushless Motors For Industry Apparatus And Personal Care

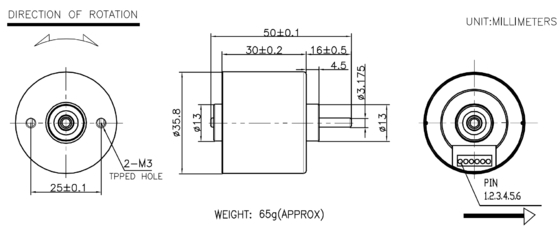

A BLDC 3630 brushless motor is a type of permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on an electronic controller to manage the flow of current through the motor windings. The "3630" designation typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "30" represents the length in millimeters.

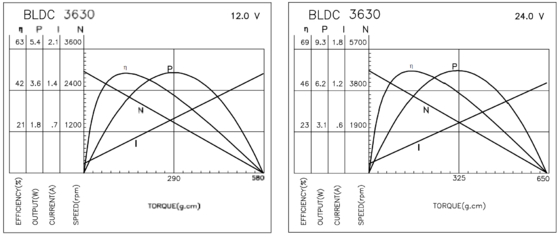

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Low Maintenance: BLDC motors eliminate the need for brushes and mechanical commutation, reducing energy losses and wear, resulting in higher efficiency and lower maintenance costs.
-
Compact Size and High Power Density: Despite its small size (36mm diameter and 30mm length), the BLDC 3630 motor can deliver significant power, making it suitable for applications where space is limited but high performance is required.
-
Wide Speed Range and Precise Control: These motors can operate over a wide range of speeds and can be precisely controlled using PWM (Pulse Width Modulation) for speed regulation
