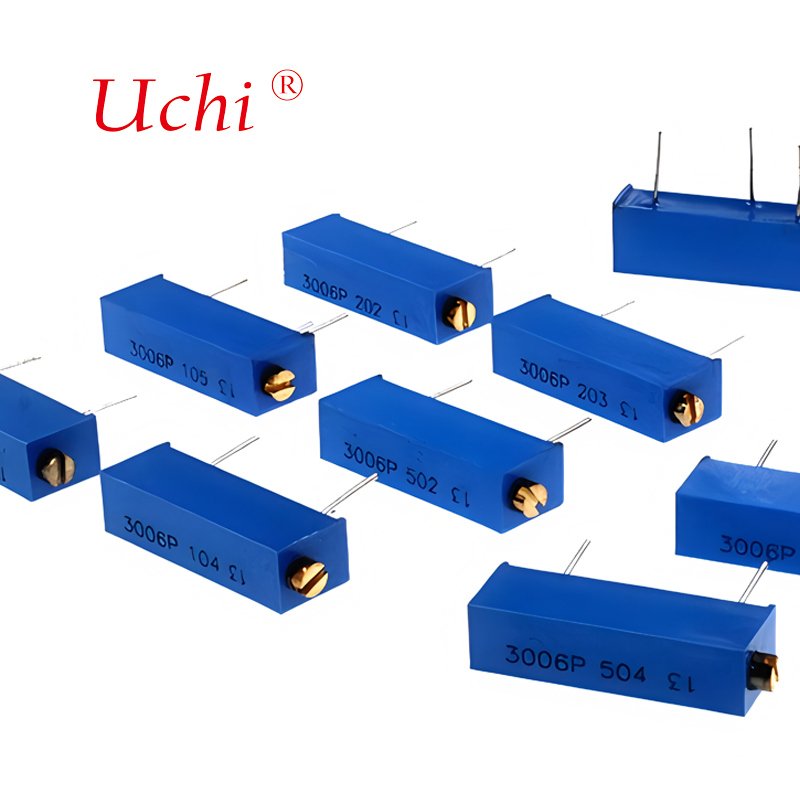

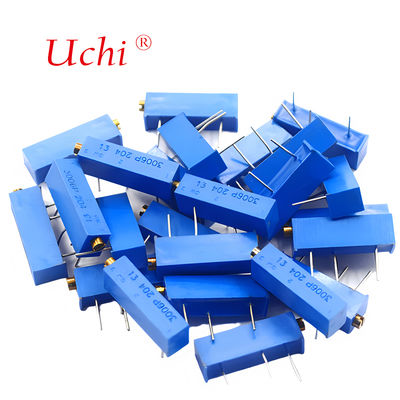

3006P 205 Metal Ceramic Fine-tuning Potentiometer, 2m Ohm With Knob, Precision Multi-turn Adjustable Potentiometer
Ürün ayrıntıları:
| Menşe yeri: | Dongguan ， Guangdong, Çin |
| Marka adı: | Uchi |
| Sertifika: | SMC |
| Model numarası: | 3006P |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 100 adet |
|---|---|
| Fiyat: | pazarlık edilebilir |
| Ödeme koşulları: | Banka havalesi, paypal, Western Union, MoneyGram |
| Yetenek temini: | Ayda 50000000pcs |
|
Detay Bilgi |
|||
| Rezistans: | 10Ω ~ 5mΩ | Direnç toleransı: | ±% 10 |
|---|---|---|---|
| Nominal Güç: | 0,5W (maks. 300V) | Etkili elektrik seyahati: | Mekanik hareketin ≥%70'i |
| Yalıtım direnci: | ≥ 1GΩ (100V AC) | TCR: | ±250*10-6/°C |
| Sıcaklık Aralığı: | -55°C~+125°C | Voltaja dayanmak: | 640V (DC veya AC tepe değeri) |
| Kontak Direnç Varyasyonu (CRV): | ≤±1%R veya 3Ω | ||
| Vurgulamak: | 205 metal ceramic potentiometer with knob,2m ohm precision multi-turn potentiometer,3006P adjustable potentiometer with warranty |
||
Ürün Açıklaması
3006P 205 Metal Ceramic Fine-tuning Potentiometer, 2m Ohm With Knob, Precision Multi-turn Adjustable Potentiometer
The 3006 series multi-turn metal glass glaze fine adjustment potentiometer features a glass glaze resistor and rotating system. Clockwise knob rotation adjusts resistance values, enabling precise voltage and current control. The ABS resin housing provides insulation, flame retardancy, high strength, durability, and wear resistance. Ideal for voltage division, rheostat applications, and current control, the 3006P offers exceptional stability and long service life.
Key Features
- 3/4" Rectangular/Multiturn/Cermet/Industrial/Sealed design
- Low PC board profile - only 1/4" high
- Panel mount option available
- RoHS compliant version available
- Optimized for trimmer applications
Specification Parameters
| Electrical Characteristics | |
|---|---|
| Range of nominal resistance | 10Ω~5MΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 640V (DC or AC peak value) |
| Effective electrical travel | ≥70% of mechanical travel |
| Environment Characteristics | |
|---|---|
| Rated power | 0.5W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R |
| Physical Characteristics | |
|---|---|
| Total mechanical travel | 22±2 laps |
| Starting torque | ≤35mN.m |
| Standard package | 25 pcs /tube(3006P) 20 pcs /tube(3006P-T) |
Product Size
Application Areas
The 3006P is widely used in electronic devices including audio equipment, instruments, and communication systems for circuit calibration, volume adjustment, and brightness control.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
