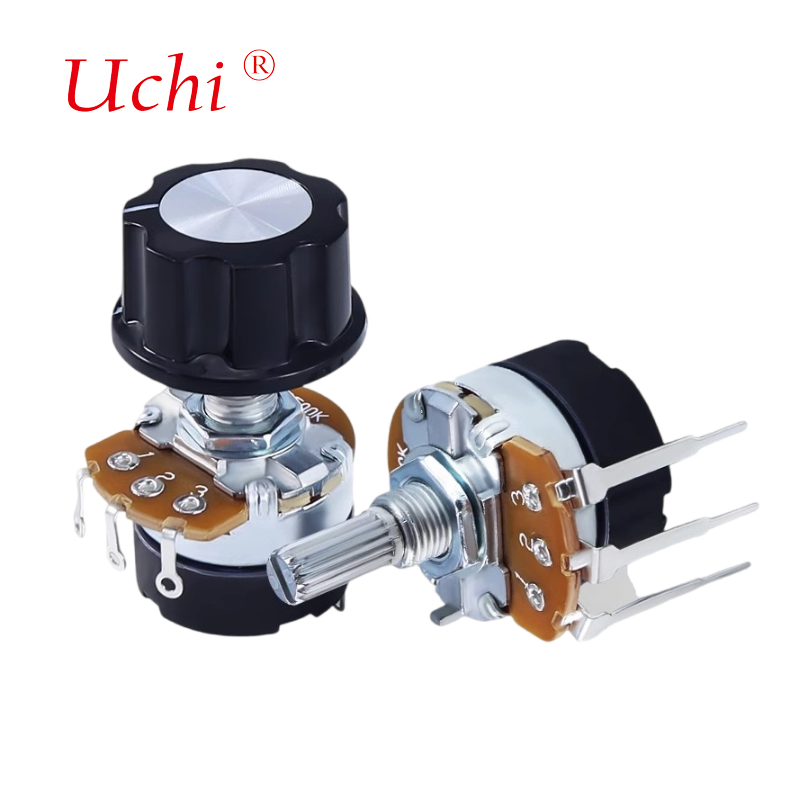

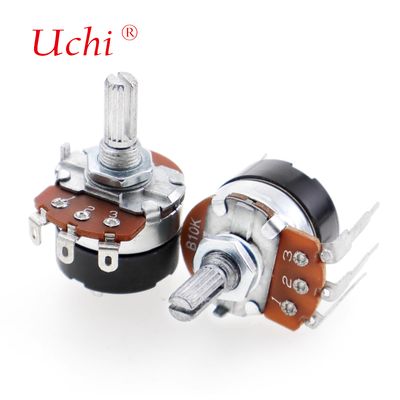

WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
Ürün ayrıntıları:
| Menşe yeri: | Dongguan ， Guangdong, Çin |
| Marka adı: | Uchi |
| Sertifika: | SMC |
| Model numarası: | WH138 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 100 adet |
|---|---|
| Fiyat: | pazarlık edilebilir |
| Ödeme koşulları: | Banka havalesi, paypal, Western Union, MoneyGram |
| Yetenek temini: | Ayda 50000000pcs |
|
Detay Bilgi |
|||
| Rezistans: | 1KΩ~2MΩ | Sıcaklık Aralığı: | Eğri B:0,5W Diğer eğri B:0,25W |
|---|---|---|---|
| Maksimum çalışma voltajı: | Eğri B:500V Diğer eğri B:250V | Direnç Yasası: | ABC |
| Toplam dönme açısı: | 300 ° ± 5 ° | Direnç toleransı: | ± 20 (%) |
| Özellikler: | Karbon Film Potansiometre | Direnç Toleransına İzin Ver: | ±%20(1MΩ veya daha fazlası30%) |
| Dönme torku: | 2~20 mN.m(20~200gf.cm) | Döner ömür: | 10.000 döngü |
| Vurgulamak: | 24mm carbon film potentiometer,rotary speed regulator potentiometer,WH138 resistance speed controller |
||
Ürün Açıklaması
WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
High-quality carbon film rotary potentiometer designed for precise speed regulation in various electronic applications.
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Temperature Range | -10℃~70℃ |
| Rated Power | Curve B: 0.5W Other curve B: 0.25W |
| Max Operation Voltage | Curve B: 500V Other curve B: 250V |
| Resistance Range | 1KΩ~2MΩ |
| Allowable Resistance Tolerance | ±20% (1MΩ or more 30%) |
| Rotational Noise | ≤47mV |
| Terminal Resistance | R≥250KΩ: 0.1%R max 250KΩ>R>10KΩ: 20Ω max 10KΩ≥R: 10Ω max |
| Resistance Law | A, B, C |
| Dielectric | AC500V, 1 minute |
| Insulation Resistance | More than 100MΩ at DC500V |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Rotational Torque | 2~20 mN.m (20～200gf.cm) |
| Total Rotational Angle | 300°±5° |
| Rotary Life | 10,000 cycles |
| Shaft Stopper Strength | 6Kgf.cm |
| Soldering | Temperature T≤265℃: time ts5s |
Product Dimensions
Product Applications
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing.
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
